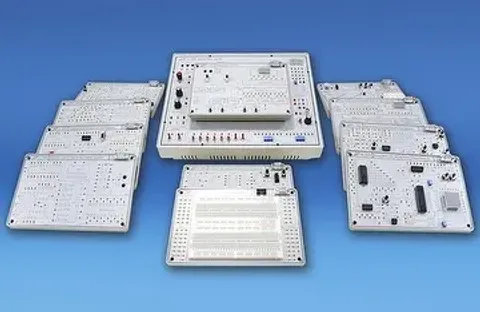

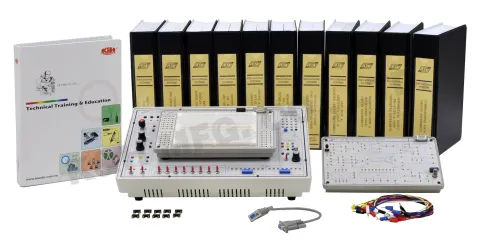

Advanced Digital Logic Lab

     The KL-310 Advanced Digital Logic Lab is designed for students and engineers interested in developing and testing prototype circuits. The lab includes combinational logic, sequential logic,  memory, ADC/DAC. experiment circuits and offers several application circuits (PWM, timer, motor control..etc.).

     All the necessary equipment for digital logic experiments such as power supply, clock generator, switches, displays are built-in on the main unit. The lab has 10 experiment modules and one CPLD & breadboard experiment module.

Features:

1. The whole trainer is fully designed by FPGA/CPLD logic circuit. Buffer circuits have enhanced
    protection for each module which is powered by main unit through power socket, avoiding wrong
    input power source during the experiment.
2. Cover different levels of logic circuit experiments, ranging from combinational logic, sequential
    logic as well as the logic circuit interfacing with microcontroller and practical application circuit for
    daily use.
3. Students can implement their own circuit from universal CPLD & breadboard experiment module,
    making it possible to prototype most analog and digital circuits in the system.
4. Include various types of ADC & DAC circuits to learn different interfacing circuits between analog
    and digital signal.
5. Built-in 8-channel multiplexer in main unit to measure multiple digital signals in real time.
6. Multiple operation modes from 4-digit 7-segment display (a) scanning display mode, (b) individual
    digit display mode, (c) frequency counter mode for measurement of internal and external clock.
7. Individual keep case for all modules for easy storing and carrying

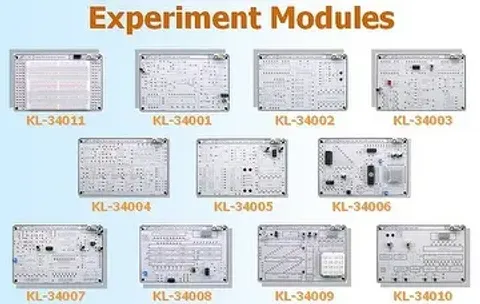

List of Experiments:

  1. KL-34001 Combinational Logic Circuit Experiment

  2. KL-34002 Arithmetical Logic / Tri-state & Code Converter Experiment

  3. KL-34003 Encoder, Decoder & Multiplexer Logic Circuit Experiment

  4. KL-34004 Flip-flop & Sequential Logic & Counter Circuit Experiment

  5. KL-34005 Oscillator / Pulse ; Load ; Up / Down Counter Circuit Experiment

  6. KL-34006 Memory, Matrix LED & DAC/ADC & MCU Interface Circuit Experiment

  7. KL-34007 Digital & Analog Timer, Pulse Generator Circuit Experiment

  8. KL-34008 Ramp-compare / SAR / Dual-slope ADC Experiment

  9. KL-34009 Keyboard & Display for Stepping Motor Position Control

10. KL-34010 Precise Digital Clock Timer

11. KL-34011 Universal CPLD & Breadboard Experiment
